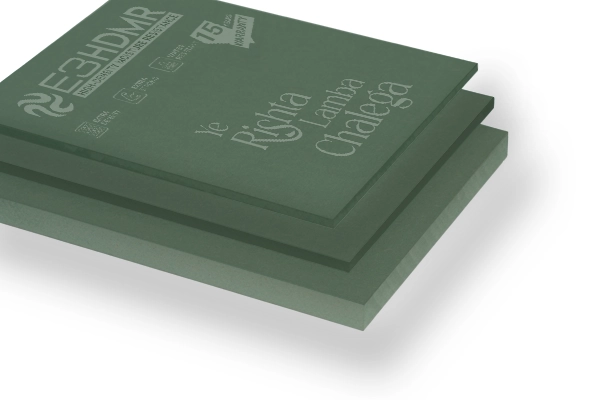

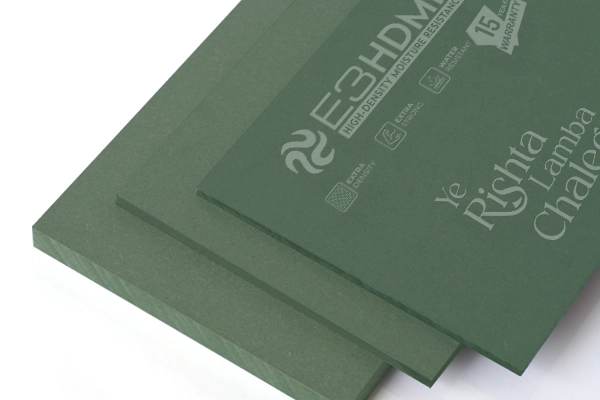

E3 HDMR
The E3 HDMR panel product stands as a superior alternative to conventional local plywood. These high-density boards are engineered to deliver exceptional performance, characterised by remarkable water resistance, outstanding durability, and unmatched dimensional stability. Notably, they provide a robust shield against termites, viruses, and fungi and are impervious to borers.
With these advanced features, our boards are designed to guarantee longevity and reliability across a diverse spectrum of applications. E3 HDMR panels are ideal for use in panelling, furniture construction, and interior applications within commercial spaces.
E3HDMR
| 16.75 mm HDMR PLAIN | |||||
| S.No. | Test Description | Test Ref. | Unit | Specification | Test Value |
| 1 | Density | IS – 2380 PART 3 | kg/m³ | 600 to 900 | 800 |
| 2 | Variation from mean Density | IS – 2380 PART 3 | % | ± 10 | 4 |
| 3 | Moisture Content | IS – 2380 PART 3 | % | 5 to 10 | 6.28 |
| 4 | Variation from mean moisture content percent (absolute) | IS – 2380 PART 3 | % | ±3 | 1.52 |
| 5 | Linear expansion (thickness Swelling in water)Due to general absorption after 24 hrs Soaking(Max) | IS-2380 PART 17 | % | 12 | 7.12 |
| 6 | Modulus of Elasticity (Min.) | IS – 2380 PART 4 | N/mm2 | 2500 | 3812 |
| 7 | Modulus of Rupture, N/mm² (min.) | IS – 2380 PART 4 | N/mm2 | 26 | 37.53 |
| 8 | Internal Bond | IS – 2380 PART 5 | N/mm2 | 0.65 | 1.32 |
| 9 | Screw withdrawal Strength (Min.) | IS – 2380 PART 14 | N | 1250 | 1728 |
| Face | |||||
| Edge | N | 700 | 1321 | ||
| 10 | Formaldehyde Content | IS 13745:1993 | 8<Fc≤30 mg/100 g for oven dry board | 8<Fc ≤ 30 | 24.26 |
